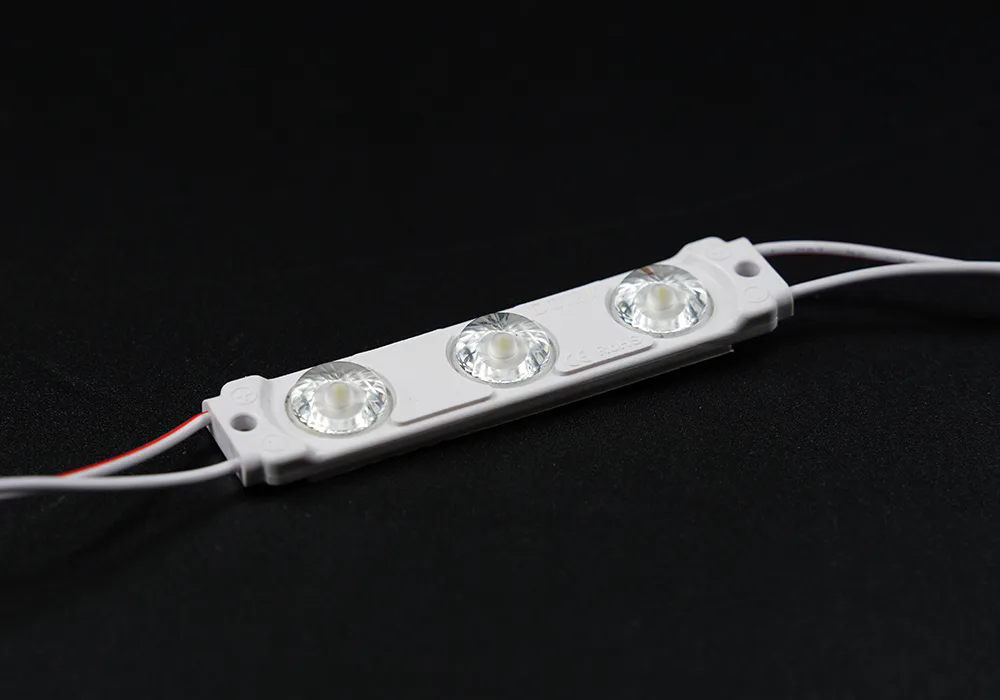

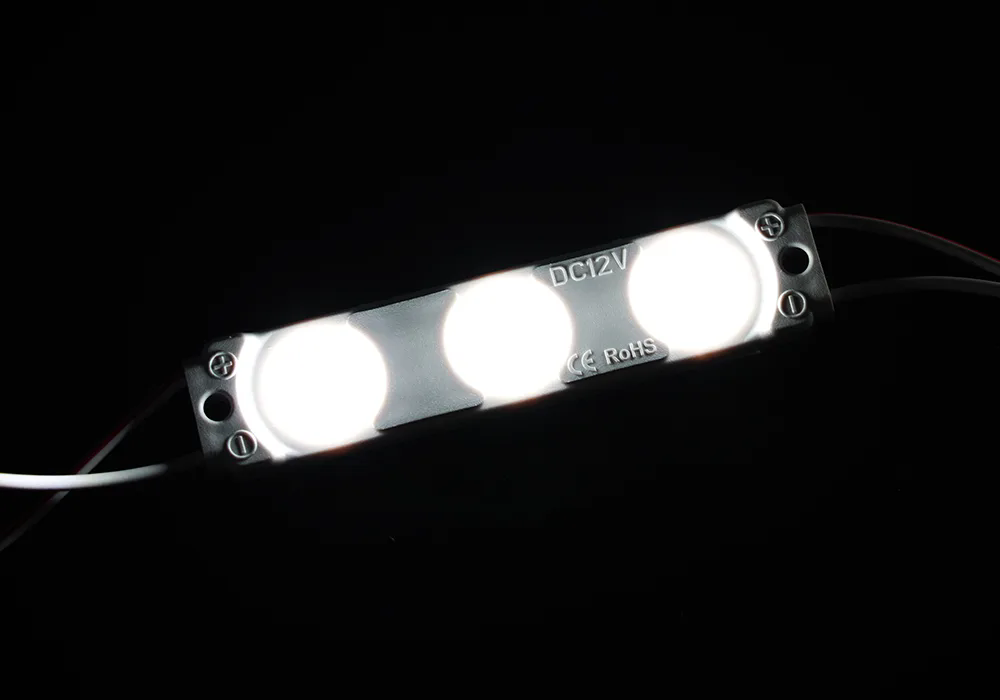

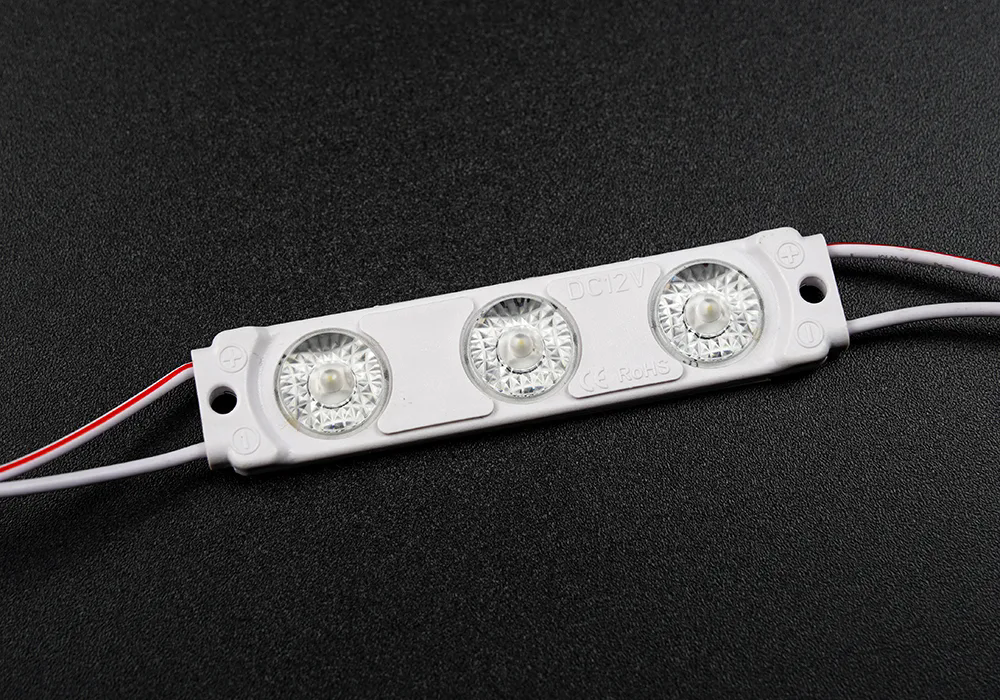

1.5W 3LED Module 175° Wide Angle+160lm/W with Acrylic Optics Lens

Description

1.5W 3 Led Module 175° Wide Angle+160lm/W with Acrylic Optics Lens

  • Power : 1.5W/pcs
  • Lumen: 240LM
  • Voltage: DC12V / DC24V
  • LED Qty: 3 LEDs
  • Color: 3000K / 4000K / 6500K / 10000K
  • High uniformity lens, wide angle 175 degree;
  • High lighting efficiency up to 160 lm/w;
  • A1070 Aluminium PCB, high brightness LED;
  • Maximum module quantity per string for 24V version up to 30pcs
  • 5 years warranty;
  • CE, ROHS
    Item No. Color Power Lumen Voltage IP Rated Beam Angle RA Cutting interval
    12V-3LED-AL

    24V-3LED-AL

    3000K / 4000K / 6500K / 10000K 1.5W/pcs 240LM DC12V/24V IP65 175° ≥ 80 Each 1 pcs

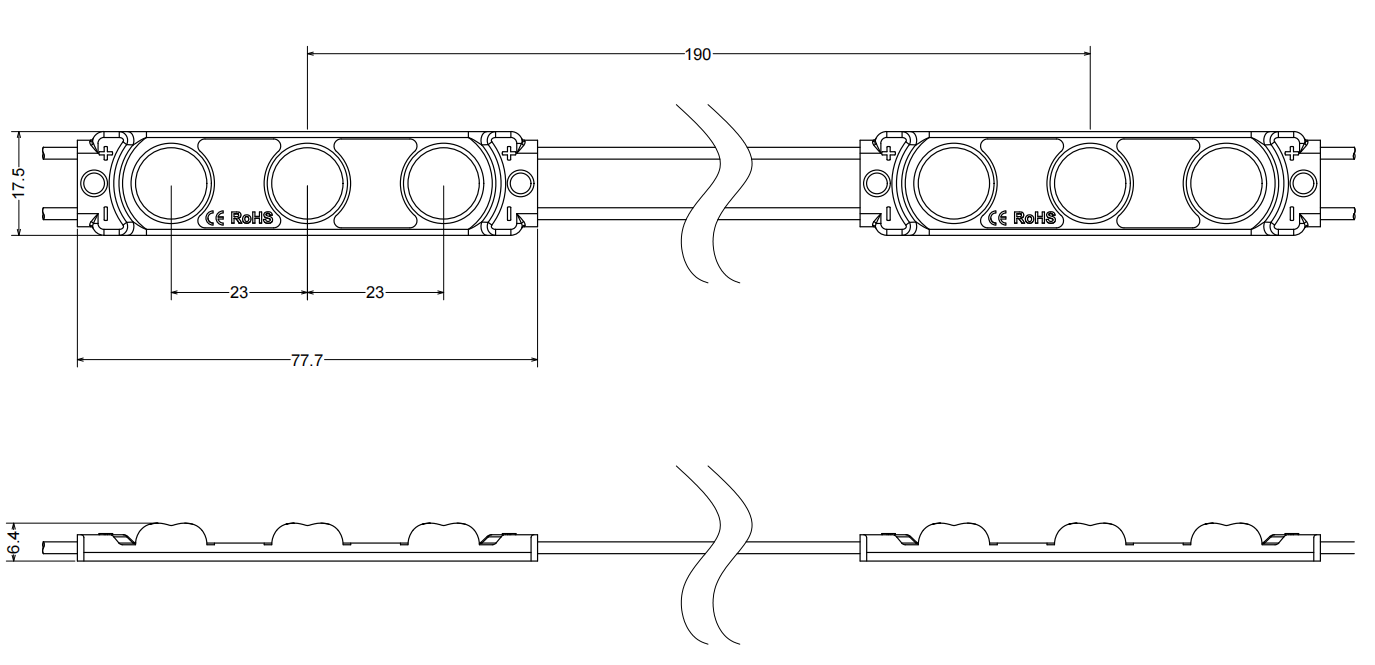

    DIMENSIONS
